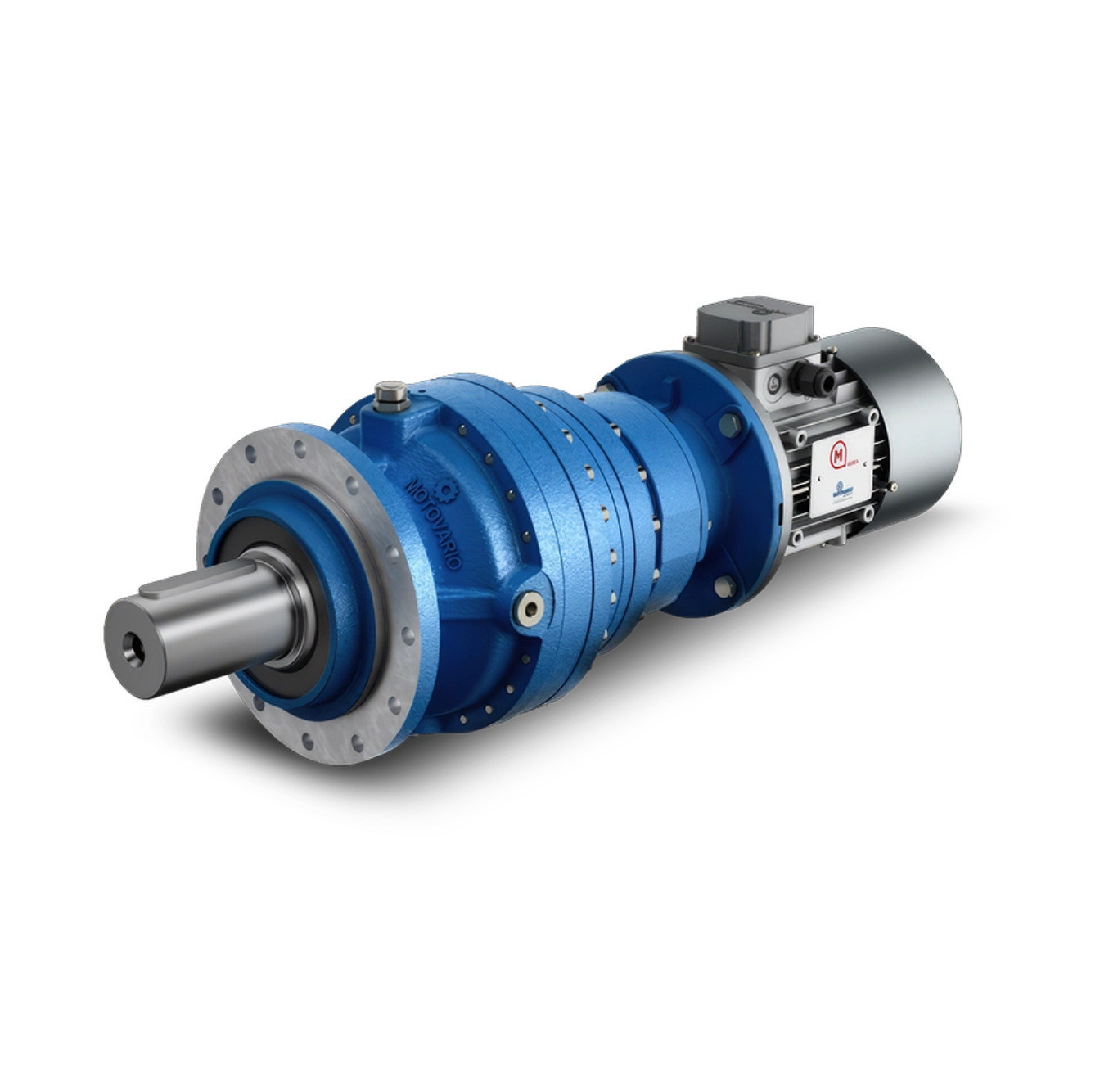

Modular HL coaxial and HB helical bevel planetary gear reducers
1, 2, 3 and 4 reduction stages
Reduction ratios between 3 and 3000
Full range including 12 sizes, with a nominal performance ranging from 1,000 to 100,000 Nm
Available versions: HL/HB – fitted for motor coupling, IHL/IHB – with solid input shaft, CHL/CHB – with compact motor, PHL/PHB – fitted for motor coupling with flexible joint
Available for assembly in flanged version or with feet
High-strength spheroidal cast iron output modules, optimised with FEM analysis
Case-hardened steel gears with optimised profiles
Gear load capacity calculated according to ISO 6336-2016 and bearings according to ISO 281
High resistance to radial loads
Eyebolt setup for all sizes, for simple and safe handling
Vertical assembly positions with no need for forced lubrication
