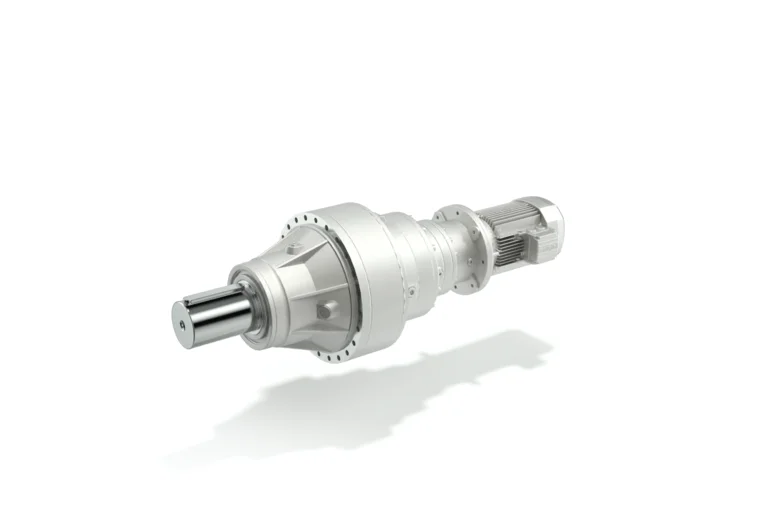

300M Series

• Sizes: 300 to 325
• Available versions: In-line and right-angle versions, ATEX-certified versions for explosive environments (2G/2D), combined versions (HD, A, W/VF Series)
• Casing: High-quality planetary gearbox with high shock resistance
• Power: Available upon request
• Torque range: 1,250 … 1,286,700 Nm
• Gear ratios: 3.4 … 2,916
• Efficiency: High torque transmission with minimal downtime, built-in cooling fan for optimized performance
• Degree of protection: Available with taconite seals and patented integrated cooling solution
• Load capacity: Verified according to international standards
• Paint: Corrosion-resistant paint, optional tropicalization
• Accessories: Independent cooling unit, negative multi-disk brake, reinforced seals
• Output options: Foot or flange mounted, splined shaft (solid, heavy duty, hollow, hollow with axial blockage device), solid keyed shaft (heavy duty, stirrer/mixer version), hollow shaft with double keyway or shrink disk
• Motors compatibility: Input with solid shaft, input with e-motor coupling
• Motor options: Thermistors and thermostat sensors, independent forced cooling, incremental sin/cos absolute single/multi-turn encoders, anti-condensation heaters, backstop
