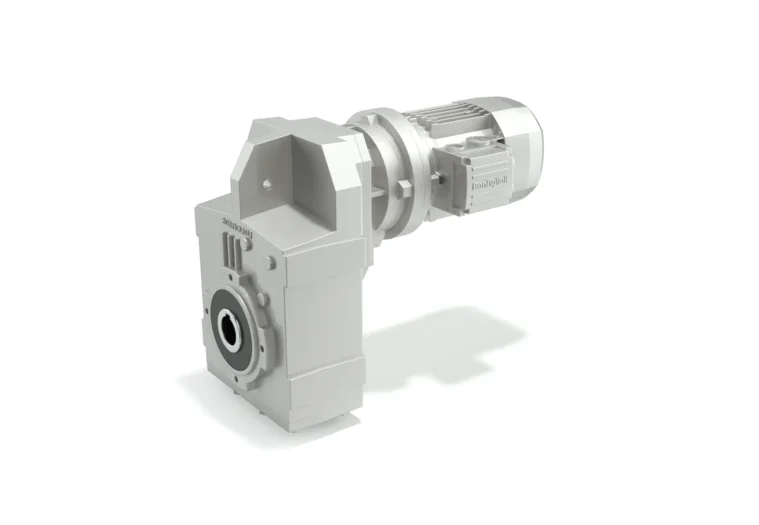

F Series

• Sizes: F10 to F90
• Available versions: IEC and Compact motors, ATEX-certified versions for explosive environments (2G/2D)
• Casing: Space-optimized design with Unibox housing, lateral holes for side mounting
• Power: 0.09 … 123 kW
• Torque range: 140 … 14,000 Nm
• Gear ratios: 6.4 … 2,099
• Efficiency: High-performance gearing for industrial applications
• Degree of protection: Available with backstop and reduced backlash options
• Load capacity: Verified according to international standards
• Paint: Corrosion-resistant paint, optional tropicalization
• Accessories: Lateral holes for side mounting, torque arm with anti-vibrating bushings
• Output options: Keyed hollow shaft (two dimensions per size), keyless shrink disc fitting, plug-in solid output shaft
• Motors compatibility: Input with solid shaft, input with e-motor coupling
• Motor options: Thermistors and thermostat sensors, independent forced cooling, incremental sin/cos absolute single/multi-turn encoders, anti-condensation heaters, backstop
