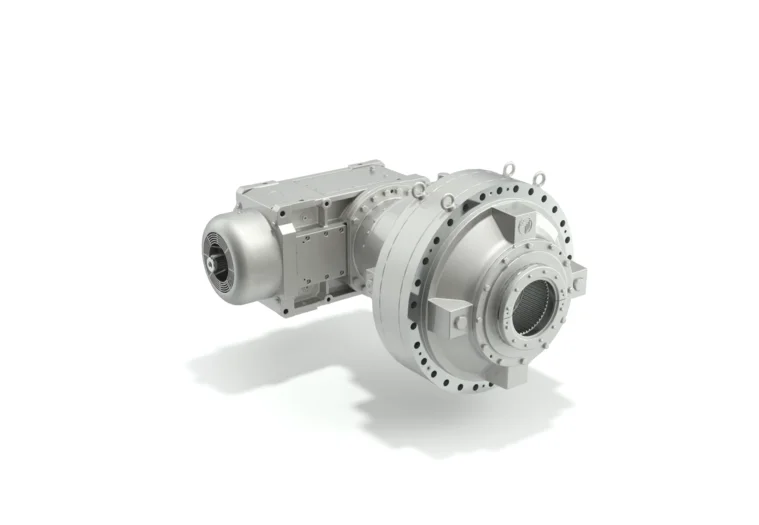

3/H Series

• Sizes: 3/HDO15 to 3/HDO25
• Available versions: Combination of planetary and helical bevel heavy-duty gear units, customizable with cooling systems and hydraulic couplings
• Casing: Robust design for high-speed and high-torque applications
• Power: Available upon request
• Torque range: 135,000 … 1,750,000 Nm
• Gear ratios: 89.1 … 1,070
• Efficiency: High power transmission in a compact design, ensuring long service intervals
• Degree of protection: Optional forced lubrication and backstop devices
• Load capacity: Verified according to international standards
• Certifications: Certificate of compliance, Inspection certificate
• Accessories: Auxiliary thermal devices, Forced lubrication, Backstop devices, Torque arm, Base plates, Fluid couplings, Shoe brakes
• Output options: Solid cylindrical shaft, Solid shaft with keyway, Solid shaft with supporting feet, Hollow shaft with shrink disc, Hollow shaft with keyway
• Motor input options: Solid shaft input, E-motor coupling input (1. IEC asynchronous motors: BN, BE, BX, 2. Compact asynchronous motors: M, ME, MX, 3. Reluctance motors: BSR, Single-phase motors: BS)
• Motor options: Thermistors and thermostat sensors, Independent forced cooling, Incremental sin/cos absolute single/multi-turn encoders, Tropicalization, Anti-condensation heaters
