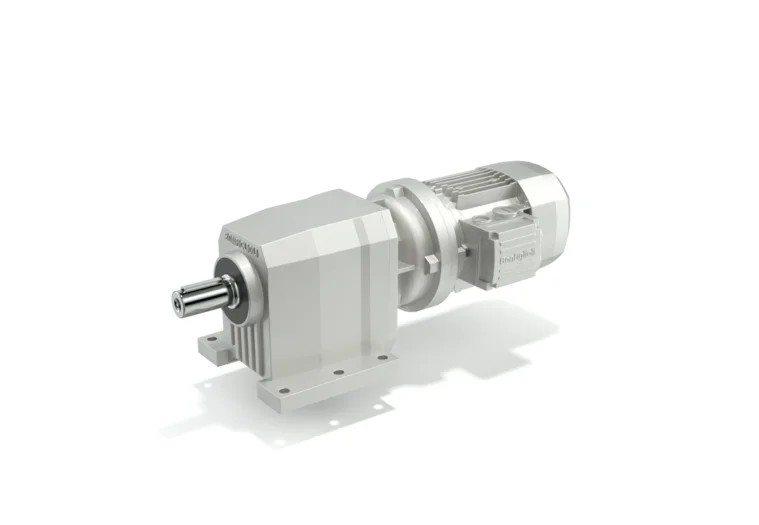

C Series

• Sizes: C05 to C100
• Available versions: IEC and Compact motors, ATEX-certified versions for explosive environments (2G/2D)
• Casing: Space-optimized design with Unibox housing
• Power: 0.09 … 213 kW
• Torque range: 45 … 12,000 Nm
• Gear ratios: 2.6 … 1,481
• Efficiency: High-performance gearing for industrial applications
• Degree of protection: Available with surface protection up to C5
• Load capacity: Verified according to international standards
• Paint: Corrosion-resistant paint, optional tropicalization
• Accessories: Double oil seals, fluor elastomer seals, reduced backlash
• Output options: Feet or flange mounting, B14 flange, metric or inch series solid output shaft
• Motors compatibility: Input with solid shaft, input with e-motor coupling
• Motor options: Thermistors and thermostat sensors, independent forced cooling, incremental sin/cos absolute single/multi-turn encoders, anti-condensation heaters, backstop
