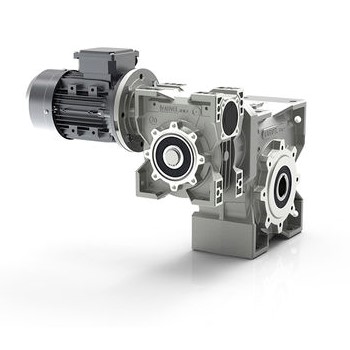

Available versions: 2-stage worm gearboxes, designed for high reduction ratios beyond those achievable with a single-stage worm gearbox or a worm gearbox with an XA pre-stage
Casing: Die-cast aluminum housing (up to size 85), grey cast iron (size 110)
Power: Up to 0.9 kW (1400 rpm) / 1.2 HP (1800 rpm)
Torque range: Up to 1,350 Nm / 11,950 in-lb
Gear ratios: 420:1 to 10,000:1
Backlash: 10’-15’ angular backlash
Efficiency: Optimized for high reduction applications with lifetime synthetic oil lubrication
Degree of protection: Available with specialized oil seals and safety shields
Load capacity: Verified according to international standards
